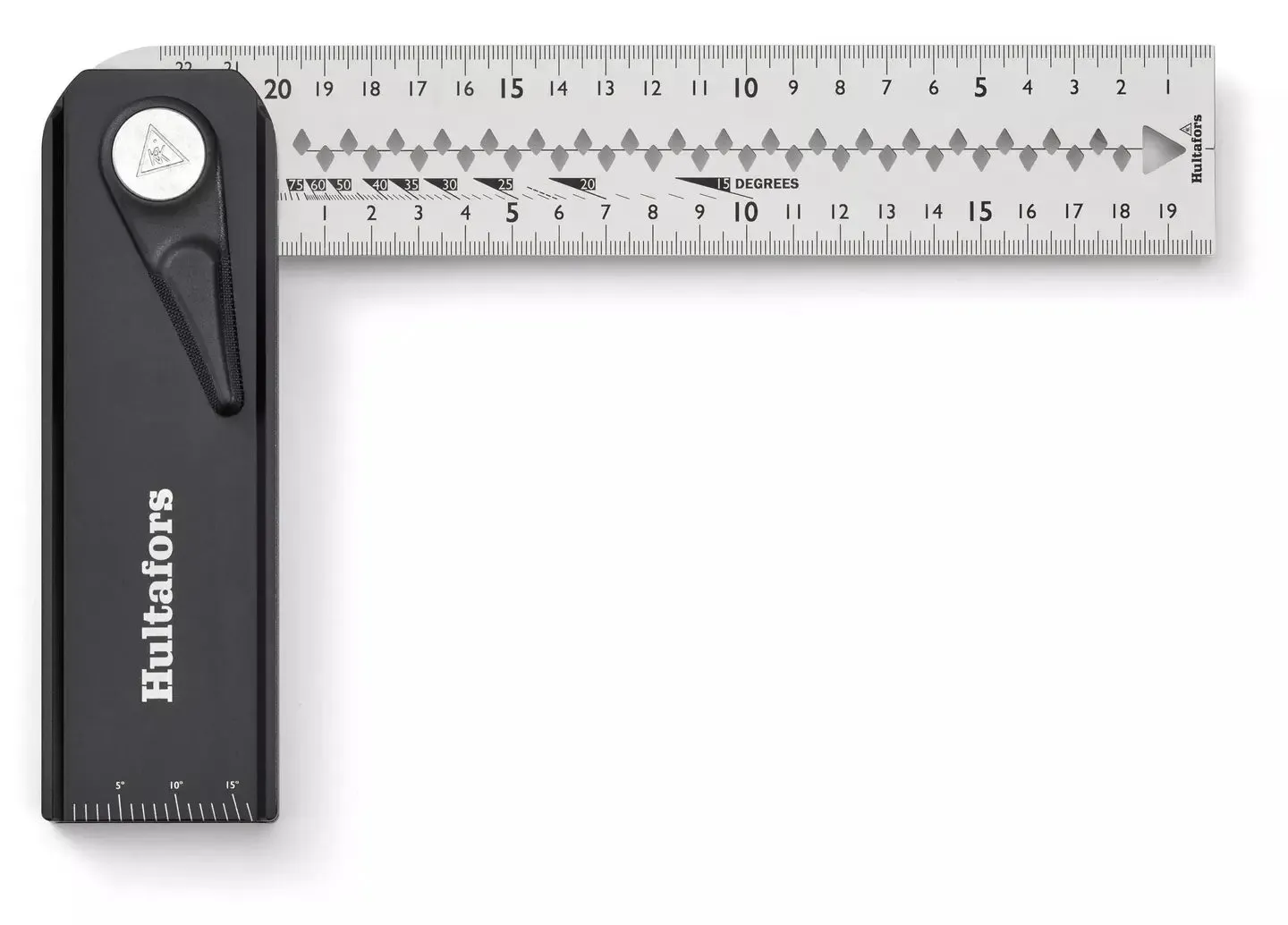

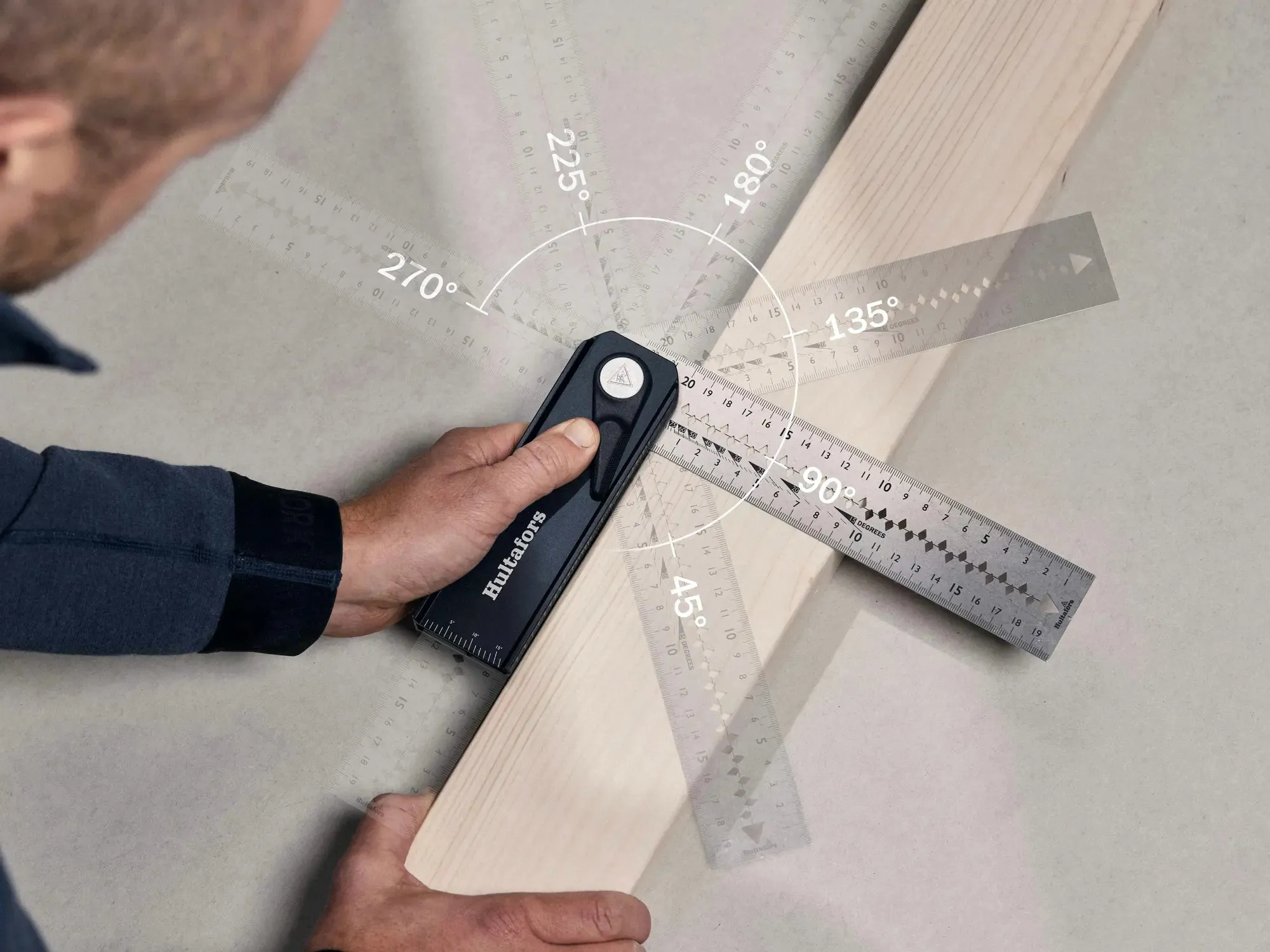

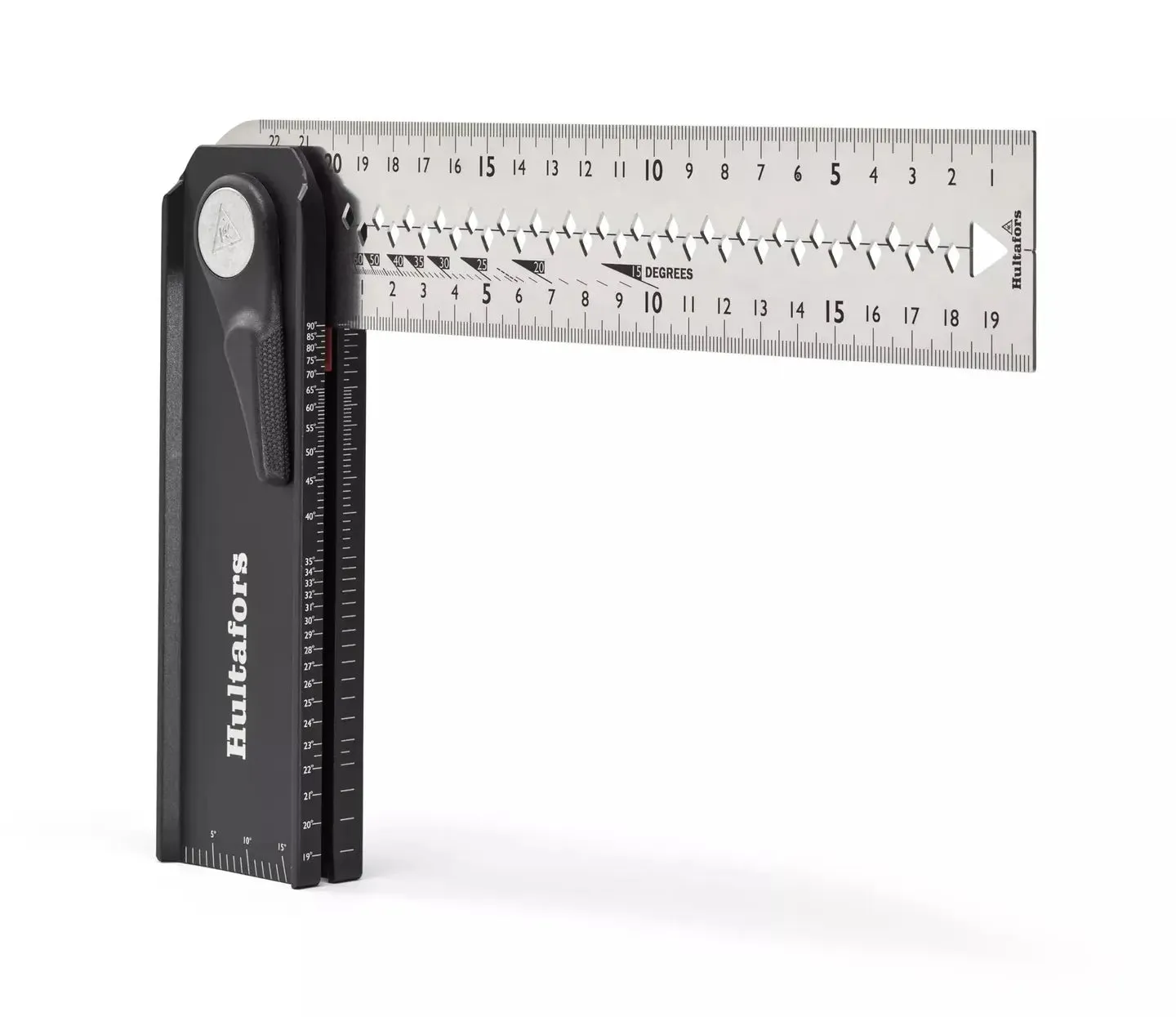

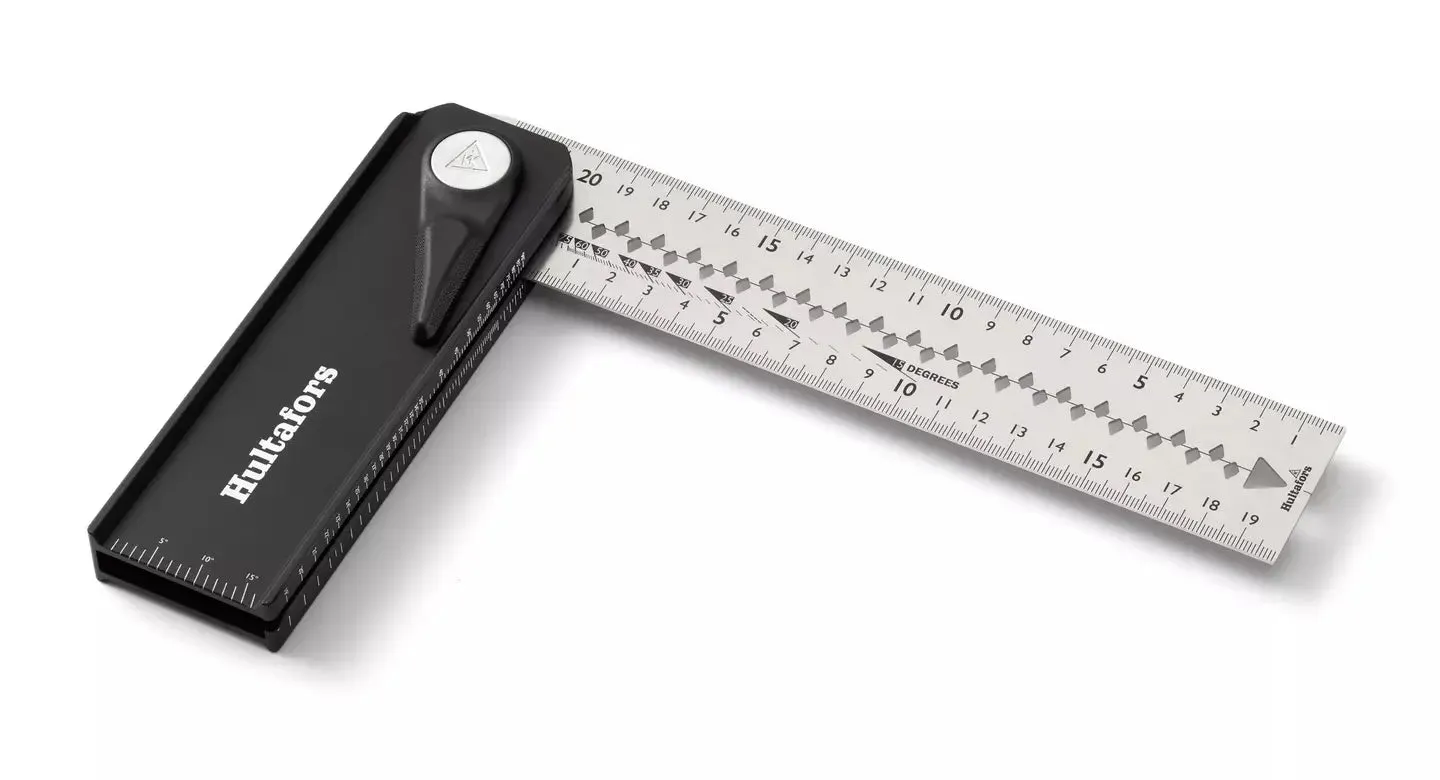

An innovative adjustable square that also functions as a bevel square and an angle finder. The blade can be rotated with fixed positions for 45°, 90°, 135° (180°, 225° and 270°). If you rotate the blade more than 180° you can also use the opposite side of the stock where there is no slit that for example thin sheet metal parts can slide into. When you shift the lever, it can also be used as a bevel square to copy any angle between 0 and 270 degrees. The lever can also be used to lock it at whatever angle you like.

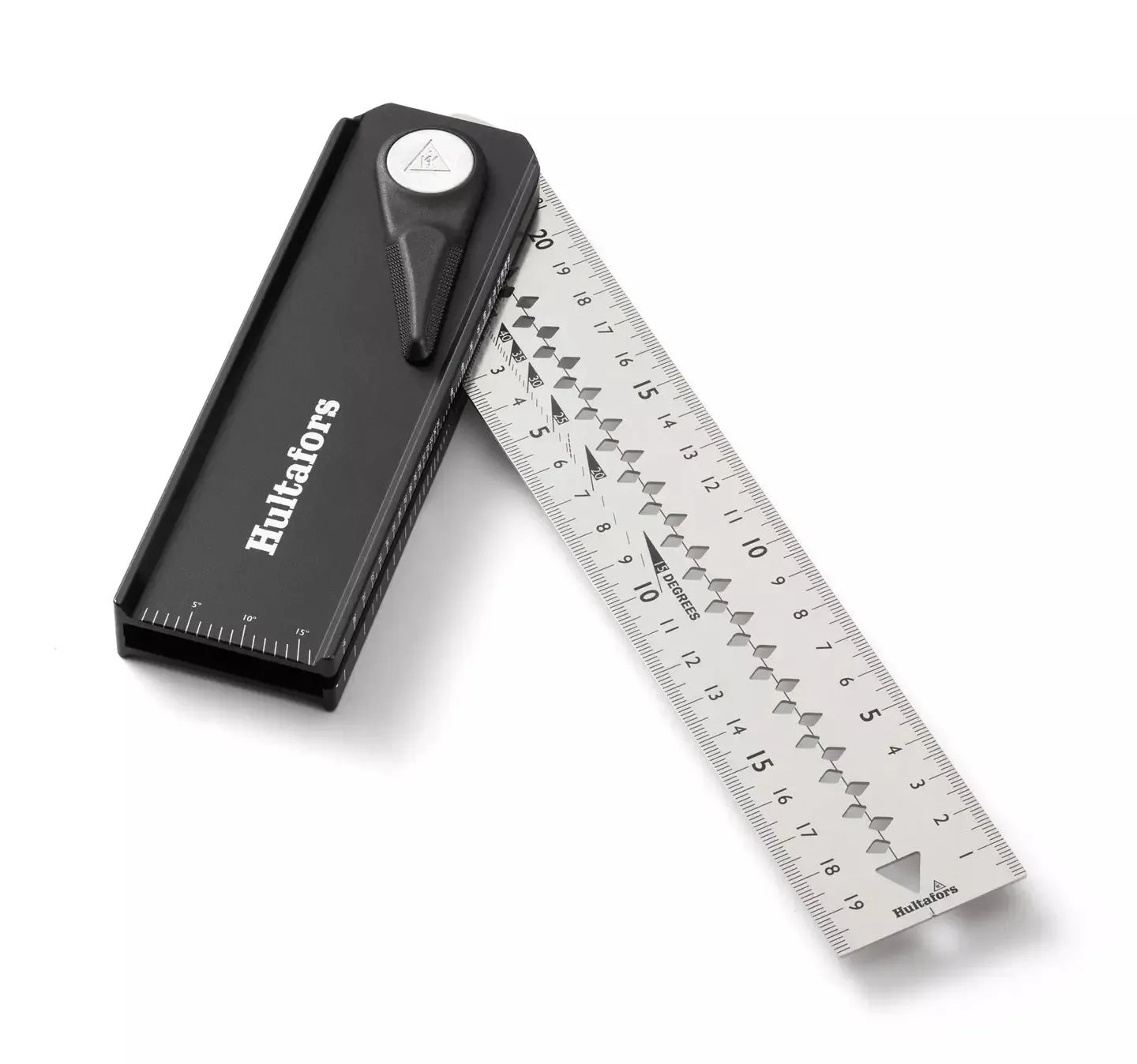

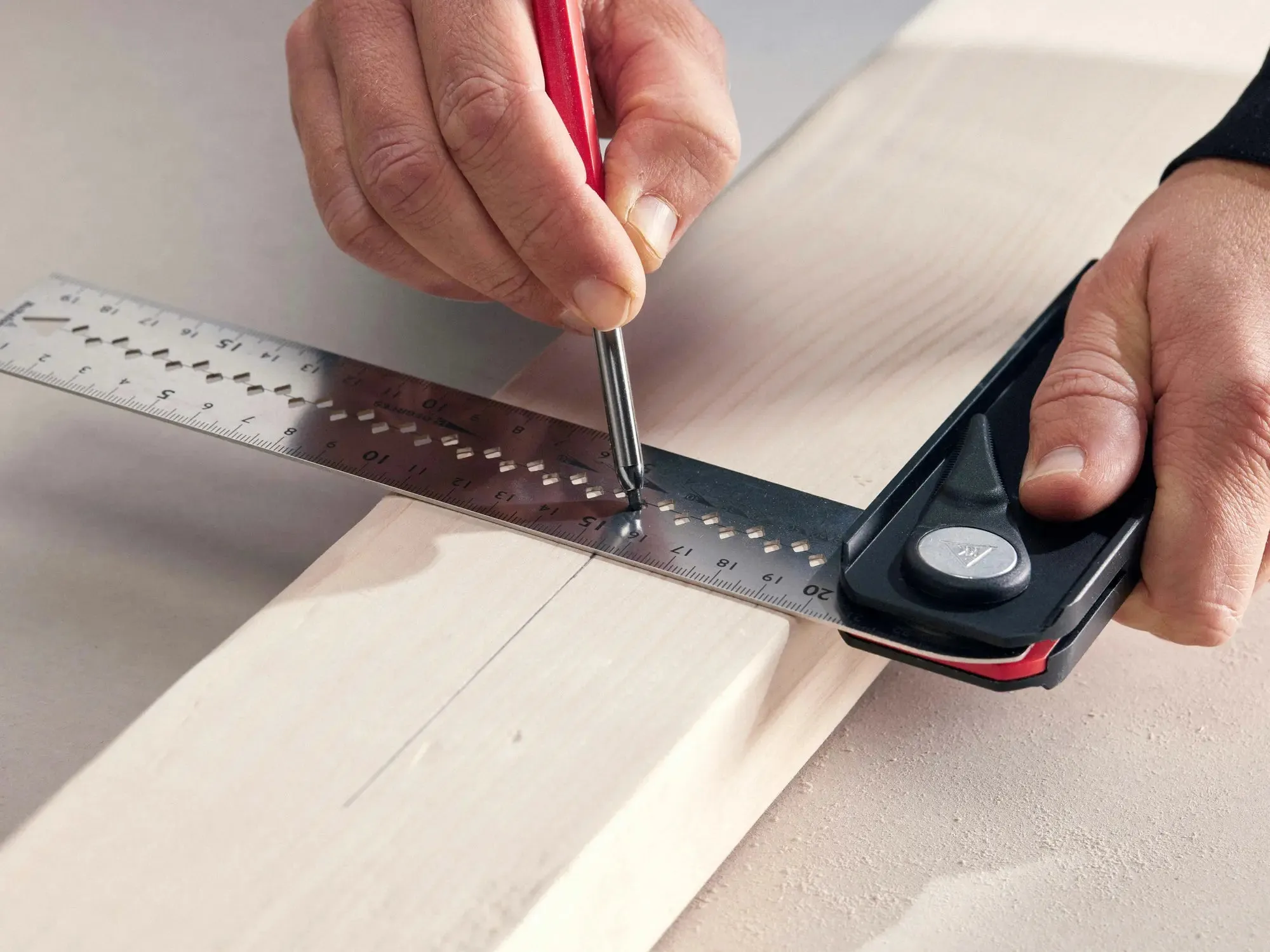

There is a scale on both the blade and handle to measure angles between 0 and 90 degrees. The square is also completely foldable, which makes it easy to store and carry in the pocket of your work trousers. The blade is 45 mm wide to accommodate work with standard stud dimensions and has a center line that makes it easy to quickly mark out both sides of a stud. The blade also has scribing notches, spaced 5 mm apart, which can be used to draw or cut a line parallel along an edge.

A robust joint and a 25cm long blade of 1 mm thick, high-strength stainless steel provides a very durable design that can withstand tough working environments and will lasts a long time. Carefully selected materials and manufacturing techniques such as a CNC-milled stock and a blade cut with a precision laser provide high accuracy; angle tolerance ±0.06° (±1 mm/m).

Features

• Adjustable with fixed positions for 45°, 90°, 135° (180°, 225° and 270°).
• Can be used as a lockable bevel square.
• Laser etched millimeter graduation with very high contrast and abrasion resistance.
• The stock is made of fully anodized aluminum with a 19 mm thick handle.

Made in Europe with full control over working conditions and sustainability.
